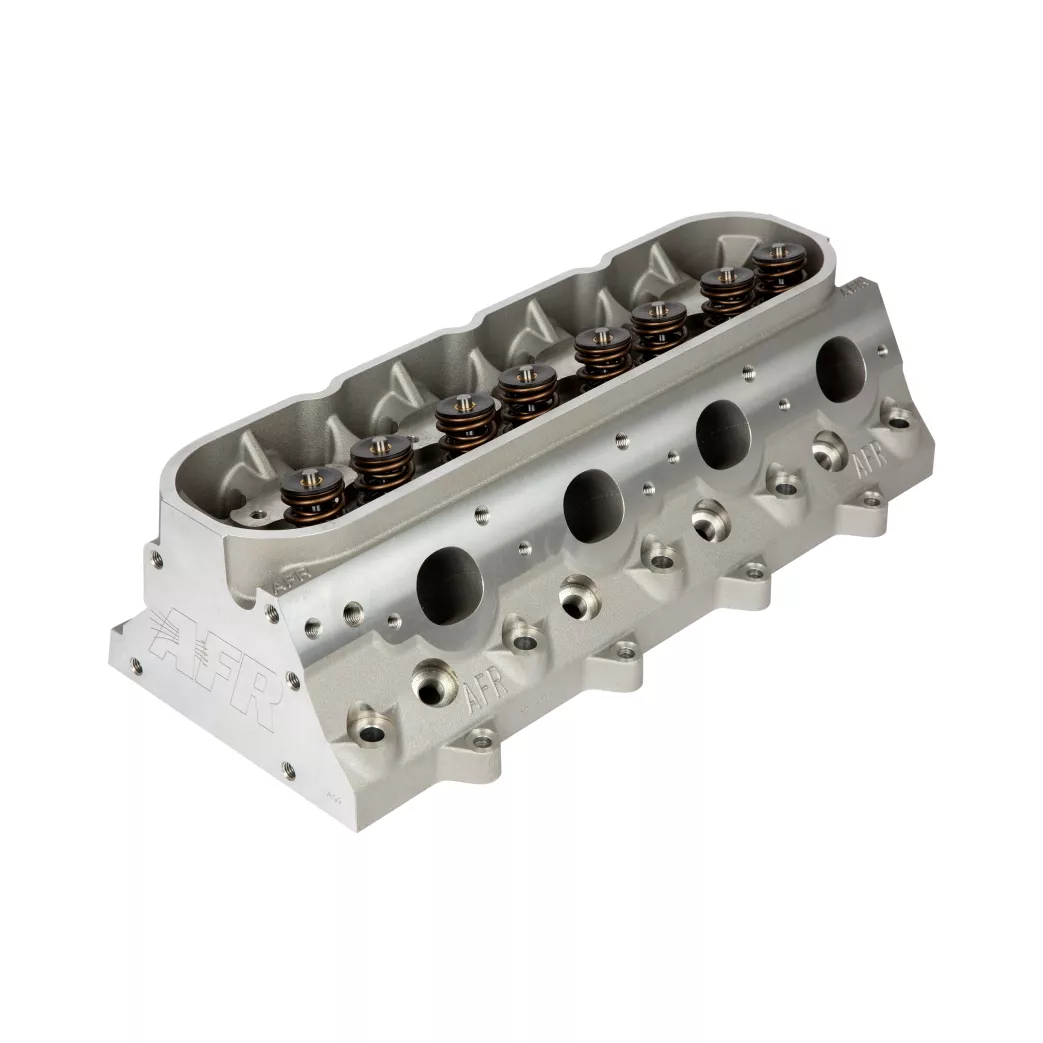

AFR LS3 Enforcer as cast 238/72cc assembled (each)
SKU: AFR1803
$1,498.86
| AFR LS3 Enforcer as cast 238/72cc assembled (each) |
Description
AFR’s 238 LS3 Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. The AFR 238cc LS3 Enforcer is the first Enforcer casting with 100% AFR design. With a smaller valve and port, this head outflows your OE LS3 casting by up to 20CFM at low lifts, offering greater performance potential. This budget friendly head is perfect for your OEM engine operating below 6300 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as PAC Racing springs, viton valve seals, machined bead valve locks (not stamped), hardened spring seats, and our one piece 8mm 21-4N/21-8N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine. Please see footnotes for additional information.
| Basic Package Components | |
| 100% As Cast Intake, Exhaust, and Combustion Chambers | |
| Competition 5-angle Valve Job | |
| 8mm Bead Lock Intake Valve, 2.080″ x 5.200″ Overall Valve Length |
AFR #7241
|
| 8mm Bead Lock Exhaust Valve, 1.600″ x 5.205″ Overall Valve Length |
AFR #7212
|
| PAC Racing Spring 1.290″ OD Hydraulic Roller Dual Valve Spring, 140 lbs. on seat, .600 maximum lift, Max RPM 6300-6500 |
AFR #8017
|
| 7° Steel Retainers 1.245″ O.D x .880″ I.D x .655″ I.D |
AFR #8514
|
| 7° Bead Lock Valve Keepers |
AFR #9007
|
| Viton Valve Seals .600″ O.D x .495″ I.D |
AFR #6615
|
| Hardened Valve Spring O.D Locator 1.380″ O.D x .570″ I.D |
AFR #8042
|
| Rocker Rail Stand |
AFR #6040
|
| 238cc LS3 As Cast Flow Chart | |||||||
| .200 | .300 | .400 | .500 | .550 | .600 | .650 | |
| Int | 157 | 229 | 276 | 307 | 315 | 308 | 308 |
| Exh | 112 | 152 | 182 | 204 | 209 | 215 | 217 |
Test conducted at 28″ of water (pressure) on Superflow 1020
Bore Size: 4.060″, intake 3/4″ radius plate exhaust, 1 3/4″ curved pipe
Additional information
| Part Number | AFR1803 |
|---|
