Crow Cams LS 229/235 .584/.585 112
SKU: 871223
$558.81

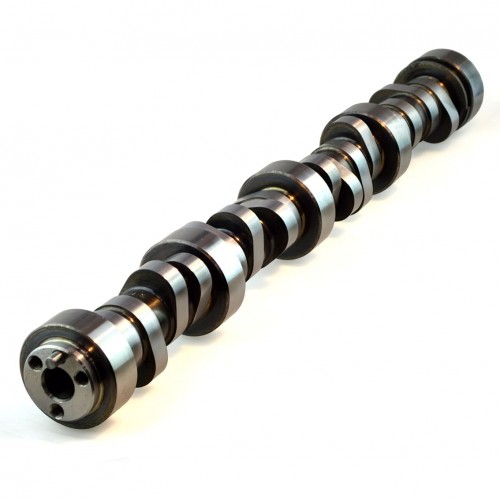

LS Cam 229/235 .584/.585 112
Description
-
-
-
-
- Lumpy street cam
High acceleration rate and great power gains
Aggressive idle
Easy on valve springs for sustained high RPM
Suits cathedral or rectangular heads
Requires stall converter
Also available to purchase with a spring kit
RPM Range Part No. Duration with 1.7 Rocker Lobe Sep Angle Lash
Measured HotAdvertised @.050” IN EX IN EX IN EX IN EX 2600 – 6300 871223 302° 299° 229° 235° .584” .585” 112° HYD HYD - Lumpy street cam
-
-
-
Generic Matching Parts
115611455-4 – Cam plate bolts
12533587 – Cathedral port manifold gaskets
12551163-4 – lifter guide bolts
12551933 – Coolant Air bleed gasket
12556127-3 – GM LS Cam bolts
12667039 – oil tube plug
12557840 – GM LS balancer bolt
12560228 – LS1/LS2 crank position sensor
12560961 – GM LS Rocker arm bolt
12572654 – oil pick up with screen
12573460 – LS oil Galley plug
12577215 – GM LS rocker cover bolt
12585673 – timing cover seal
12589016 – LS Cam retaining plate
12595365-4 – LS7 lifter guides
12602540 – LS coolant air bleed plug
12612350 – LS oil pan sump Gasket
12617944 – exhaust manifold gasket
12630223-2 – water pump gasket
12633904 – timing cover gasket
12637683-2 – rocker cover gasket
12639249 – rear cover gasket
12639250 – rear main cover
12677836 – oil pressure sensor
12681275 – LS rocker arm
12710303 – high pressure oil pump
89060436 – rear main seal
PUG001 – oil pick up girdle
CRCLSBUSH – trunnion upgrade kit
LSINST-KIT – rocker trunnion install kit
LSCAMPLATEKIT – LS cam plate kit
LSMAINBOLTKIT – Maion bolt kit
LSOILPUMPKIT – std genuine oil pump
LSTIMINGGASKKIT – timing gasket set
4439-16 – LS dual valve spring kit
1511ML-16 – PSI beehive valve spring kit
4207X-16 – PAC RPM series valve spring kit
4209X-16 – PAC RPM dual valve spring kit
VTKLS8 – LS dual valve spring kit
VTKLS5 – LS single conical valve spring kit
134-1003 – ARP cam bolt kit
234-2503 ARP balancer bolt kit
5250 – LS7 lifters
S9-16 valve stem seals
VSV900VTEX-16 – top hat valve stem seals
PBK001 – under drive balancer set
LSBLOCKKIT – rear cover and bottom end gasket set
5250R – Johnson drop in Race lifters
5251 – Johnson LS Hydraulic roller tie bar lifters
VTKLS9 – LS Dual valve spring kit
VTKLS8T – LS Dual valve spring kit with titanium retainers
5294R – Johnson LS high rpm hydraulic roller tie bar lifter short travel
12591720 – GM Cam position sensor
12588670 – timing chain dampener
12598832 – GM valley cover
12610141 – valley cover gasket
12633906 – timing cover
LS1 Parts
12498544 – Head Gaskets
12498545-2 – Head Bolts
12552203 – LS1 rocker arm pivot stand
12557752 – blue LS oil pump pick up tube o ring
12558177-2 knock sensor grommets
12558178 – LS1 valley cover gasket
12559353 – LS 24 tooth reluctor wheel
12681185 – LS1 water pump
19420911 – LS1 Cam position sensor
92512702 – LS1 VRS Gasket set
LS1LIFOHAULLATE – LS1 lifter over haul kit (late)
LS1LIFTEROHAUL – LS1 lifter over haul kit
LS1ROCKERKIT – LS1 rocker kit
VTKLS1 – LS1 single conical valve spring kit
VTKLST – LS1 dual spring and titanium retainer kit
134-3609 – ARP early head bolt kit
234-4316 – ARP head stud kit early
CS8LS1-SR – timing set
6.0/6.2L parts
12589227 – 6.0 LS2 head gasket
12610046 – 6.0/6.2 head gasket
12710208 – 6.0/6.2 water pump
17800568-2 – short head bolts
92512703 – LS2 VRS gasket kit
134-3610 – ARP head bolt kit 2004 on
234-4317 ARP head stud kit 2004 on
Additional information
| Weight | 6 kg |
|---|
