Description

Product Description

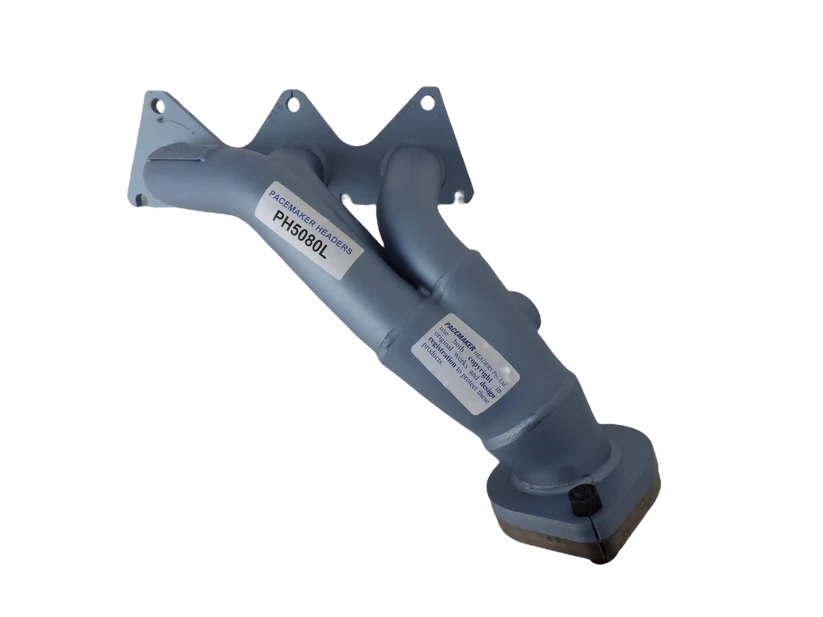

Pacemaker Headers to suit

Commodore

VE

2006-2012 (Does not fit VE Series II 2012 or 2013-2017 VF Model – due to 1 piece head manifold combination)

Alloytec V6 3.6L

Single Overhead Cam 180KW Engine

Dual Overhead Cam 210KW Engine

Manual & Automatic

TUNED design

Important Notes

• Will not fit 3.0L S.I.D.I. (due to 1 piece head manifold combination)

• *Note – Fabrication is required* These Headers do not bolt to a factory flange position. The original engine pipe needs to be cut in front of the cat. A extra flange is supplied to be welded to the original exhaust after the cut is made. This creates a flange point for the headers to bolt to.

• Not suitable for 3.0 Litre or 3.6 Litre after 2012

• PEX5080 x 2 wiring extensions required for S.I.D.I. 3.6 Litre after 2009-2012 (These are included in this kit)

Product Specs

Part #:	PH 5080
P/Steering:	Yes	Gasket:	PHFG 5069
Air Con:	Yes	Primary Pipe:	1⅝” (41mm)
Oxy Sen:	Yes	Secondary Pipe:	–
E.G.R:	N/A	Outlet:	2¼” (57mm)
Y Branch:	N/A	Fitting Time:	2½ Hrs
