Description

Product Description

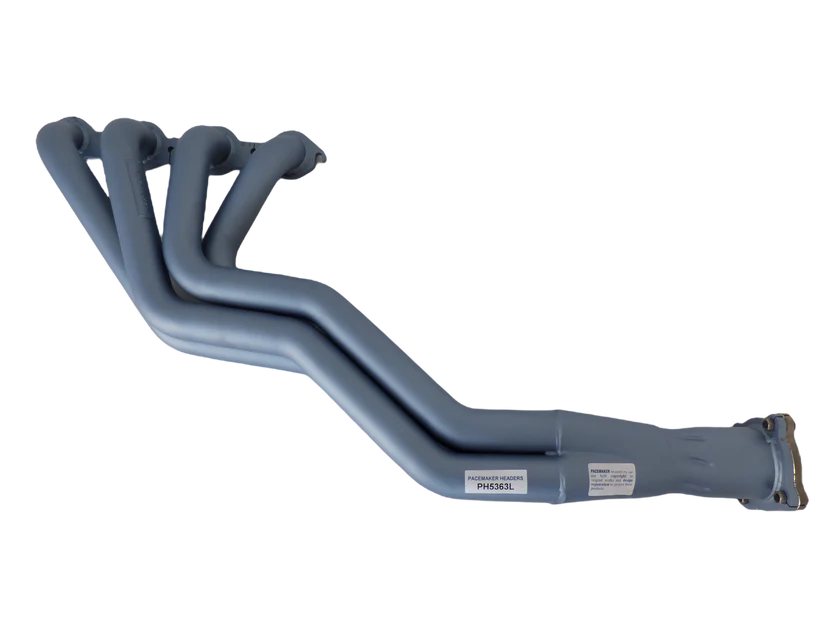

Pacemaker Headers to suit

Commodore models listed below

VT Series II, VX, VU, VY (VY Series I Only) (See important notes for more information)

Crewman models listed below

VY Series I

Monaro models listed below

V2

Statesman models listed below

WH, WK Series I

Engine V8

5.7 Litre LS1 (Gen III)

Manual & Automatic

TUNED design

Important Notes

• This kit has no Oxygen Sensor Wiring Loom Extensions. These are required for Commodore models VY Series II and VZ and Statesman/Caprice models WK Series II and WL. Click on the links below for the right kit.

For VY Series II Commodore or WK Series II Statesman/Caprice you need Part No. (PH5363 L/R VY Series 2)

For VZ or WL 5.7Ltr LS1 Engine cars your need Part No. (PH5363 L/R VZ 5.7L)

For VZ or WL 6Ltr LS2 Engine cars your need Part No. (PH5363 L/R VZ 6L)

• Designed for Modified Engines and Super Charged Applications

• Will not fit All Wheel Drive Commodore’s – Refer to Part No. (PH5366) for Adventra and Cross 8 AWD Headers

Product Specs

Part #:	PH 5363
P/Steering:	Yes	Gasket:	DSF 138
Air Con:	Yes	Primary Pipe:	1⅞” (48mm)
Oxy Sen:	Yes	Secondary Pipe:	–
E.G.R:	N/A	Outlet:	3″ (76mm)
Y Branch:	N/A	Fitting Time:	3 Hrs
